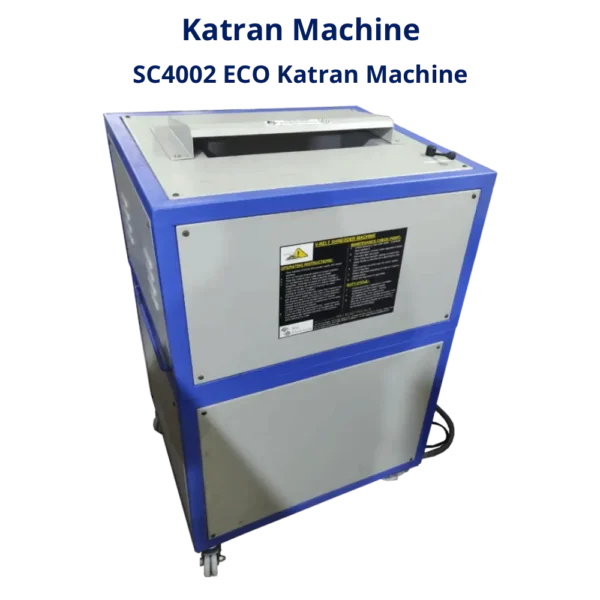

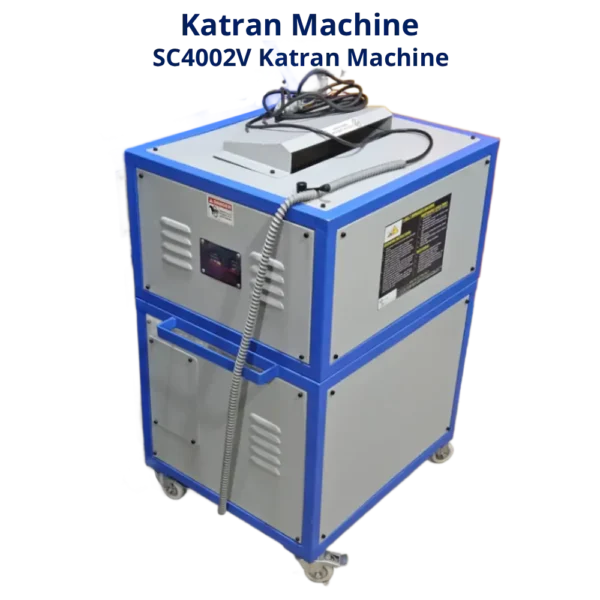

Katran Machine|Paper Katran Machine for Fruit Packaging|

Specifications

Technical Specifications of Heavy Duty Shredder Machine
Model No	SC3051V	SC4002V	SC4003V	SC5005V	SC7507V
Feed Width (mm)	305 mm	400 mm	400 mm	500 mm	750 mm
Shred Size (mm)	5 mm	5 mm	5 mm	5 mm	5 mm
Shred Capacity (70 gsm A4 sheets)	10-12	15-20	30	40	60-70
Shred Capacity Per/Day	500-600 kgs/day	800-1000 kgs/day	1000-1200 kgs/day	1500-2000 kgs/day	2500-3000 kgs/day
Voltage	230V / 415V	230V / 415V	230V / 415V	415V	415V
Motor HP	1HP	2HP	3HP	5HP	7.5HP
Motor HP – Compton make	SINGLE PHASE	SINGLE PHASE	SINGLE PHASE	3 Phase	3 Phase
Motor HP – Hindustan make	3 Phase	3 Phase	3 Phase	3 Phase	3 Phase
Speed (metres/minute)	16 mtrs/min	16 mtrs/min	16 mtrs/min	16 mtrs/min	16 mtrs/min
Cutter Diameter	75 mm	75 mm	95 mm	117 mm	147 mm
Weight (kgs)	140 kgs	150 kgs	250 kgs	350 kgs	450 kgs
Machines Dimensions (mm)	L 560 x W 600 x H 1130	L 660 x W 600 x H 1130	L 750 x W 850 x H 1075	L 850 x W 700 x H 1175	L 1310 x W 900 x H 1200
Overload Protection	Yes	Yes	Yes	Yes	Yes
Motor On/Off	Online Starter	Online Starter	Online Starter	Online Starter	Online Starter
Duty Cycle	Continuous	Continuous	Continuous	Continuous	Continuous

Salient Features

Continuous duty
Motor with inline gearbox for positive transmission
EFF2 Motor for less power consumption
5 years warranty for cutters
All metal parts with rugged construction
Large waste collection trolley for shredding large volumes
Overload & phase failure protection
Reverse forward switch 100
Manufactured in India
Custom-made manufacturing of superior quality products
Installation and maintenance services on site
User friendly
Maintenance free
Durable
Smooth operations
High security level
Low power consumption

FAQs

FAQs related to Shredder Machines

Q. What material can I shred in the shredder?

A. The Shredder Machine can shred all types of waste such as Paper, Pharma, Plastic, FRP, Metal, Glass, Wood, E-waste, Garden Waste, etc. If any of your products is not listed above, we request you to contact us and we shall get back asap.

Q. What does “Throat Width” or "Feed Width" mean?

A. Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.

Q. How do I maintain my Shredder or Grinder?

A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled. Depending on the type of shredder you purchase, this will vary. Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
