can shred all types of electronic waste

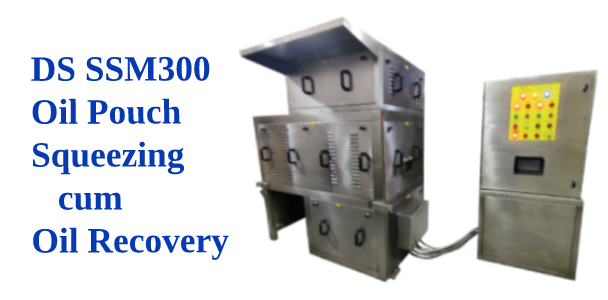

Oil Pouch Squeezing cum Recovery Machine is a heavy-duty shredder machine from Raj Electricals. It is a dual shaft shredder machine. Raj Electricals is popular for its shredder and grinder machines such as paper shredder machine, cardboard shredders, plastic bottle grinders, plastic drum shredder, and other shredder machines that destroy paper waste, plastic waste.
Our USP is customizing the shredder machines, so that it suits the client's requirements. Click here to view of Shampoo Recovery Machine. In this machine shampoo pouches are destroyed and shampoo is recovered.
DS SSM300 Machine manufactured by Raj Electricals is a patented product.
This Oil Pouch Squeezing cum Recovery Machine machine is developed using the best quality material. In this machine, the Oil pouches are destroyed and the oil is recovered, as can be seen in the video. The Oil in the pouches is collected in a separate vessel.
If required, this recovered oil can be reprocessed for further use.
Click the tabs below to view specifications, salient features and the video
,Salient features of Oil Pouch Squeezing cum Recovery Machine DS SSM300:
For more details related to price, trial and models of DS SSM300 Oil Pouch Squeezing cum Recovery Machine, kindly contact us.
| Technical Specifications of Oil Pouch Squeezing cum Recovery Machine DS SSM300 | |
|---|---|
| Model | "DS SSM300" |
| Feed Width | 300 mm |
| Voltage | 415 volts ac 3 phase 50 hz |
| Motor | 3HP 415/V A/C with Gearbox |
| Control Panel | Control Circuit 24V DC with Stop-Start Interlocking with Loto Switch & Indicator Lamps |
| Safety | Limit Switch on all doors interlocked |
| Squeezing Unit | 5HPA/C Motor |
| Drive | 5HP |
| Motor | Siemens Make |
| Shred Capacity | 40litres/hr-50 liters/hr. ( Depending on feeding speed and viscosity of liquid) |
| Contact Parts | SS304 |
| Shred Size | Uneven |
| Dimensions | L74" x W43"x H81" (approximately) |
| Machine Weight | 1300kgs (approximately) |
| Collection Vessels | 2 numbers |
| Applications | DS SSM300 Oil Pouch Squeezing cum Recovery Machine destroys the rejected pouches with oil and separates the oil. This machine shreds sachets. The Oil is collected separately for reuse. |
