FRP Waste Shredder Machine

frp waste shredder machine

FRP (Fibre Reinforced Polymer) is a composite material and it is used in construction and transportation. There is also regular use of FRP materials in the marine, aerospace, automotive industries. However, FRP Waste Management is a significant issue. If the FRP waste is thrown into landfills then it will be hazardous to the environment. FRP Waste Shredder shreds FRP waste and thus prevents the dumping of the FRP Waste in landfills.

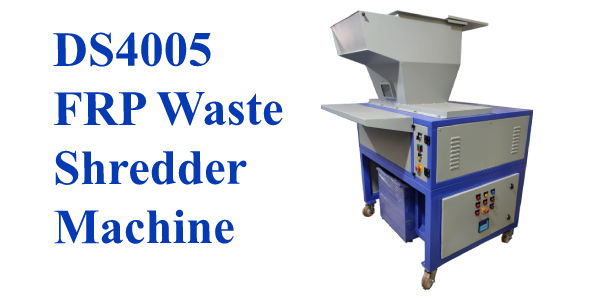

DS4005 SFRP Waste Shredder from Raj Electricals is a robust sturdy machine with a feed-width of 400mm. It is a user-friendly durable machine. The duty time is continuous with no cooling period required.

To check FRP Waste Grinder you can click on the links below
FRP Waste Grinder
FRP Scrap Grinder

Click the tabs below to view specifications, salient features and the video

,

Salient features of FRP Waste Shredder Machine DS4005:

  • Installation and maintenance services on site
  • No plastic parts used in manufacturing. All metal parts with rugged construction.
  • Vibration free. Easy to clean & lubricate.
  • User-friendly and durable machine, plug and start - no complicated functions involved
  • Control Panel with auto-reverse, anti-jamming feature and 24 Volt DC control circuit with
    &nsp     R.Y.B phase indicators, 360° safety with LOTO Switch
  • All moving parts are enclosed & bolted with special Allen key bolts.
  • Limit switch interlock for Hopper (Machine will stop if hopper is removed).
  • Stop/Start push button with E. stop & Reverse inching push button with buzzer for overload
  • All guards interlocked with limit switch (at extra cost).
  • Run time – Continuous duty.
  • Overload & phase failure Protection.
  • Optional – Belt conveyor at the output can be provided at extra cost

  • For more details related to price, trial and models of DS4005 FRP Waste Shredder Machine, kindly contact us.

    Technical Specifications of FRP Waste Shredder Machine DS4005
    Model "DS4005"
    Feed Width 400 mm
    Voltage 415 volts ac 3 phase 50 hz
    Power Required 5 hp/3.75 kw
    Shred Capacity 250 kgs/hr to 300 kgs/hr (depending upon the material density)
    Shred Size Uneven
    Waste Collection Trolley 100 litres (approximately)
    Duty Cycle Continuous – non-stop running, no cooling required
    Applications DS4005 FRP Waste Shredder shreds Can shred FRP Waste and Scrap. It can also shred Laminated Jute Fabric, Vials, Ampoules, Glass bottles, Syringes, Lami Tubes. It can also shred Cartons, Mono Cartons, Corrugated Boxes, Blister Packs, Plastic Vials, Catheters, Aluminium Foils, Tablets, HDPE Bottles, etc.

    FRP Waste Shredder Machine DS4005 Video
