can shred all types of electronic waste

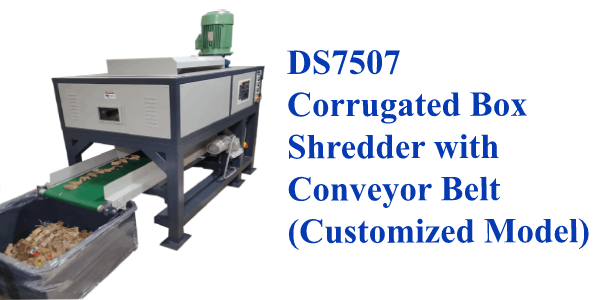

Raj Electricals has manufactured Corrugated Box Shredder Machine with Conveyor Belt at the output and this machine shreds corrugated boxes upto 7 ply. It is a customized shredder machine model. The feed-width of this machine is 750mm and the output capacity is 200 kgs/hr to 250 kgs/hr. This Shredder Machine can also shred Cartons, Mono Cartons up to 400gsm, Paper with paper clips/staples, Magazines, Leaflets, Blister pack, Strip foil, Labels, Pouches, Outserts, etc. Apart from the above corrugated box shredder machine we also have another model carton shredder machine that has been popular with our customers.
To check our other shredder and grinder machines click here
Click the tabs below to view specifications, salient features and the video
,Salient features of Corrugated Box Shredder with Conveyor Belt DS7507(Customized Model) DS7507:
For more details related to price, trial and models of Corrugated Box Shredder Machines, kindly contact us.
| Technical Specifications of Corrugated Box Shredder with Conveyor Belt DS7507(Customized Model) | |
|---|---|
| Model | "DS7507" |
| Feed Width | 750 mm |
| Voltage | 415 volts ac 3 phase 50 hz |
| Power Required | 7.5 hp |
| Shred Capacity | 200 kgs to 25O kgs/hr |
| Shred Size | 25mm x 60mm or Uneven Shred Size | Duty Cycle | Continuous – non-stop running, no cooling required |
| Applications | Corrugated Box Up to 7 Ply, Cartons, Mono Cartons up to 400gsm, Paper with paper clips/staples, Magazines, Leaflets, Blister pack, Strip foil, Labels, Pouches, Outserts, etc. . |
